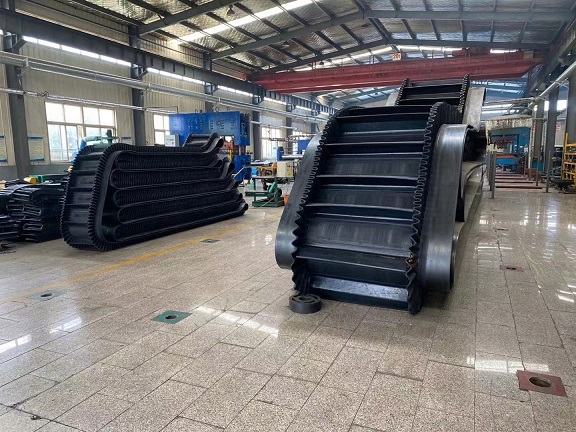

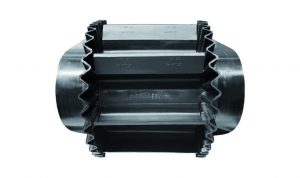

STEEP ANGLE CONVEYOR BELT INTRODUCTION:
Steep angle conveyor belt(same as Steep incline conveyor belt) can work for horizontal, sloping or vertical conveyance. So it is one of the most effective ways of elevating materials in a confined space. Although there could be limited space and strict requirements of no transfer point, low maintenance and big capacity, this belt can handle wide range materials . Thus the economic goal can be achieved by single belt operation.
Unique Conveyor Belting has a wide variety of steep angle conveyor belt options to maximize your product yield. Furthermore to keep loss at a minimum. Our sidewalls and cleats are available in various sizes, shapes, and configurations. And this allows the belt to run in either a hosiontal, vertical or inclined position.
Both steel cord or fabric reinforced bely are available for base belt. In this way, our steep angle conveyor belts will help maximize product load capacity. So that your conveyor systems overall efficiency can improve. And this will bring good results in bottom line growth.
1. Cover compound:
a. Wear resistant(according to DIN 22102, DIN-Y, W, X);
b. Heat Resistant(according to GB/T33510-2017/ISO4195:2012);
c. Fire retardant(according to EN14973, DIN-K, S, FRAS),
d. Oil-Grease resistant(according to HG/T 3714-2003, DIN22102 G, MOR, OR, COR ),
In general, other special character cobination comound is available by request.

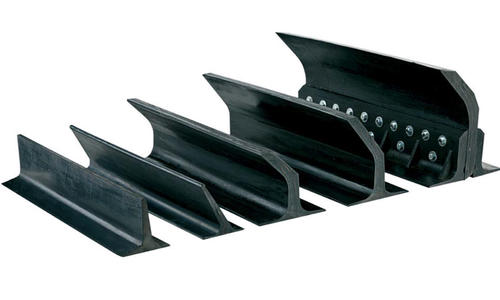

2. Cleat types: T, TS, C, TC and TCS
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
1）“TS” and “TCS” cleat are normally suitable for abrasion condition
2）“T” and “TS” cleat: up to 40 degree
3）“TC” and “TCS”: 40 degree to 90 degree
If comparing with conventional conveyor belt, or bucket elevator belt, steep angel conveyor belt has many advantages, for example:
Firstly, no Transfer Points from the feed hopper to the discharge point
Secondly, higher handling capacity with no material spillage
Thirdly, minimum maintenanceand maximum space utilisation
Lastly, low power requirement
Lifespan of a steep angle conveyor belt

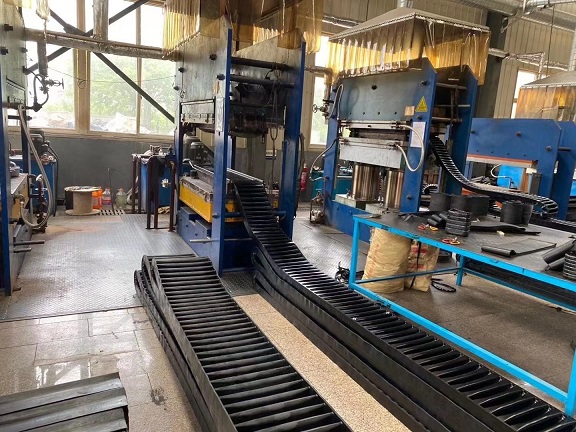

In fact, lifespan of a steep angle conveyor belt mainly depends on the connection between the profiles (sidewalls and cleats) and the base belt. Moreover, it depends on the rubber compounds quality too. For this purpose, we have created superior sidewall hot vulcanization system and exclusive profiles design. As a result, we can ensure the highest, strongest and most reliable adhesion in the market.
