Profiled Conveyor Belt

Profiled conveyor belt carry out a wide range of conveyor tasks in all industries.

While using a flat belt, the maximum angle of inclination is about 15-20°. But a profiled conveyor belt will enable the inclination up to about 40°. In fact the main force is on the bottom base belt, and the surface pattern only serves as a skid proof for transport goods. So high angle inclination only requires less space to reach desired conveying height.

Features:
1. It it suitable for conveying material with inclination of 0- 40° in order to prevent material from falling.

2. Chevron cleats are hot vulcanized onto base belts and manufactured in a flexible and wear resistant black rubber quality.

3. Full width cleats on any width, height & size

4. Available in open end or endless form, all grade & sizes, for example

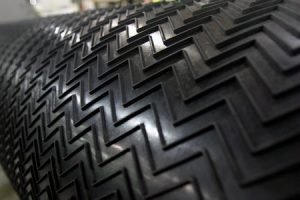

chevron conveyor belt

Unique Conveyor Belting offer profiled conveyor belt in the application where the inclination angle is too high and the conveying material is rolling back. We are offering cleated belt to prevent the material from sliding backwards.

The special profiles make increased angles by which inclination is possible and material can convey very easily and effectively as compared with smooth surface belts. Our belt inclined up to 35-40 degree, with 15 mm cleat height in V,Y,U profile , cleat angle and pitch for smooth travel over return idlers. You can use it to convey loose material like sand, fine coal and grain materials. Also in concrete batching plants, stone quarries, road scalpers, truck/wagon loading system.

Our standard widths 500 mm wide to 1200 MM wide (higher width on request as well).

COMMON TYPES OF PROFILE

Profiled conveyor belt Specification:
Chevron profile includes open V type, closed V type, L type, F type, Y type, A type, H type, etc.
Unique Conveyor Belting can also customize more design of patterns for customers accordingly.

In addition, we provide sidewall conveyor belt for elevating materials.

chevron conveyor belt
