Unique Conveyor Belting supplies leading steel cord belt that is used in the mining and construction industries. These belts are typically for transporting large volumes over long distances. As a result, they can ensure optimal performance under the harshest operating conditions.
As conveyor systems get longer, and handle increased volumes and tonnage, the belt itself eventually need to get stronger. Undoubtedly, steel cable delivers higher strength, and decreased elongation compared to fabric. What’s more, steel cord belts deliver cheaper and more reliable performance for any system with long conveying distances or high lifts.
Special Features as below:
- High tensile strength up to 8,000 kN per metre
- Available in widths of up to 2.4 metres
- Roll lengths of up to 700 m depending on specification. In addition, we provide 12-month warranty on all conveyor belts
- Wide range of accessories available

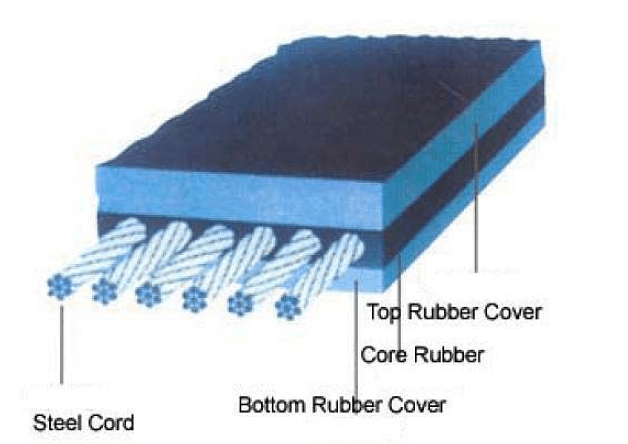

STEEL CORD CONVEYOR BELT CONSTRUCTION
Belt Characteristics as below:
In general, steel cord conveyor belt is featured with many characteristics. For example, high tensile strength, good impact resistance, long service life, low elongation, good trough ability and desired flexing resistance. As a result, it is suitable for material conveying with long distance, high haul and high speed. By and large, it is composed of top rubber, steel cord, core rubber and bottom rubber.
Application:
Widely used for material conveying in coal, mine, harbors, metallurgy, electric power, chemical industry and so on.
Type:
According to the inner structure it can be classified as general application type, tear resistance type, and flame-retardant type.
General Application
It uses the new type structural steel cable as the tension element, features largely in the high tension strength, small elongation, excellent trough ability and high flexibility. And it is applicable for the conveyance of materials with long distance, heavy load and high speed.
Tear resistance (transverse reinforced) type
Structure: It uses the new type steel cable as the tension element. On one side or both two sides vertical that is perpendicular to the length ways steel cable, evenly lay the reinforcing layer of the steel cable, steel cord, fabric etc. broadways.
Character: It has excellent impact resistance and tearing resistance performance.
Flame-retardant type
In addition to the advantages of high strength, long distance, large capacity and high speed conveying material, the flame-retardant steel cord conveyor belt also has the properties of flame retardant and electrostatic conduction, which is suitable for the safe transportation of coal.
