chevron conveyor belt

Chevron conveyor belt carry out a wide range of conveyor tasks in all industries.

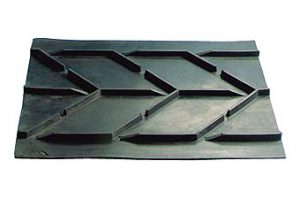

Chevron Conveyor Belt Features:

While using a flat belt, the maximum angle of inclination is about 15-20°. But a chevron conveyor belt will enable the inclination up to about 40°. In fact the main force is on the bottom base belt. While the surface pattern only serves as a skid proof for transport goods. So high angle inclination only requires less space to reach desired conveying height.

•          It it suitable for conveying material with inclination of 0- 40° in order to prevent material from falling.

•          Profiled cleats are hot vulcanized onto base belts. And we also manufacture the cleats in a flexible and wear resistant black rubber.

•          Full width cleats on any width, height & size

•          Available in open end or endless form, all grade & sizes, for example

chevron conveyor belt

Unique Conveyor Belting offer chevron conveyor belt in the application where the inclination angle is too high and the conveying material is rolling back. We are offering cleated belt to prevent the material from sliding backwards.

The special cleats make increased angles by which inclination is possible. And material can convey very easily and effectively as compared with smooth surface belts. Our belt can incline up to 35-40 degree. With 15 mm cleat height in V,Y,U profile for smooth travel over return idlers. You can use it to convey loose material such as sand, fine coal and grain materials. Also in concrete batching plants, road scalpers, truck/wagon loading system, and so on.

Our standard widths 500 mm wide to 1200 MM wide. Higher width on request as well.

COMMON TYPES OF CHEVRON

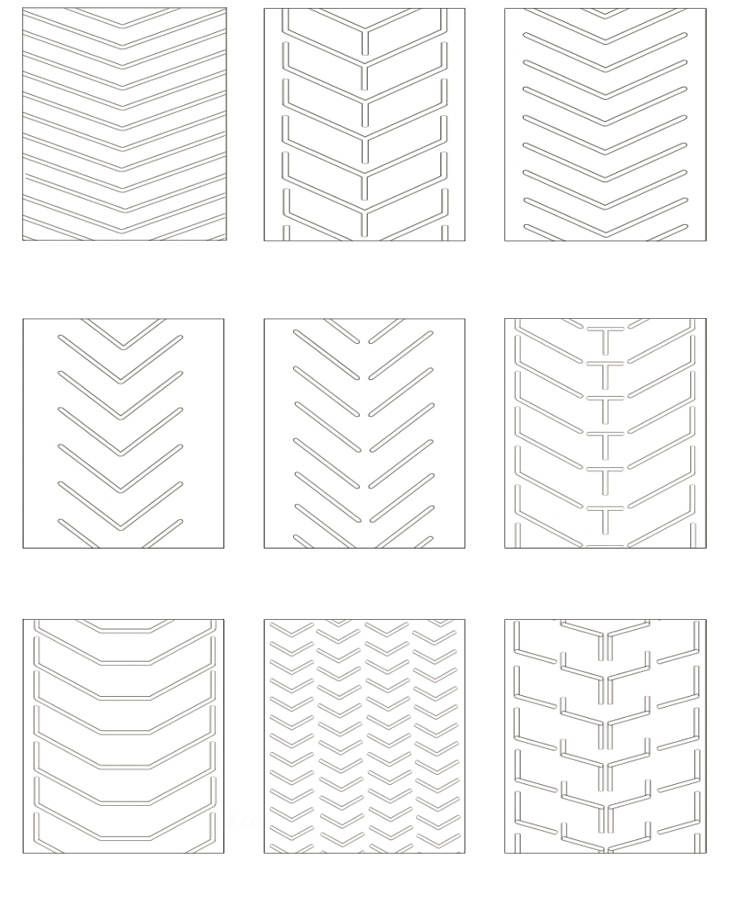

Chevron Conveyor Belt Pattern Type Selection:
Chevron profile includes open V type, closed V type, L type, F type, Y type, A type, H type, etc.
Unique Conveyor Belting can also customize more design of patterns for customers accordingly.

In addition, we provide sidewall conveyor belt for elevating materials.

chevron conveyor belt

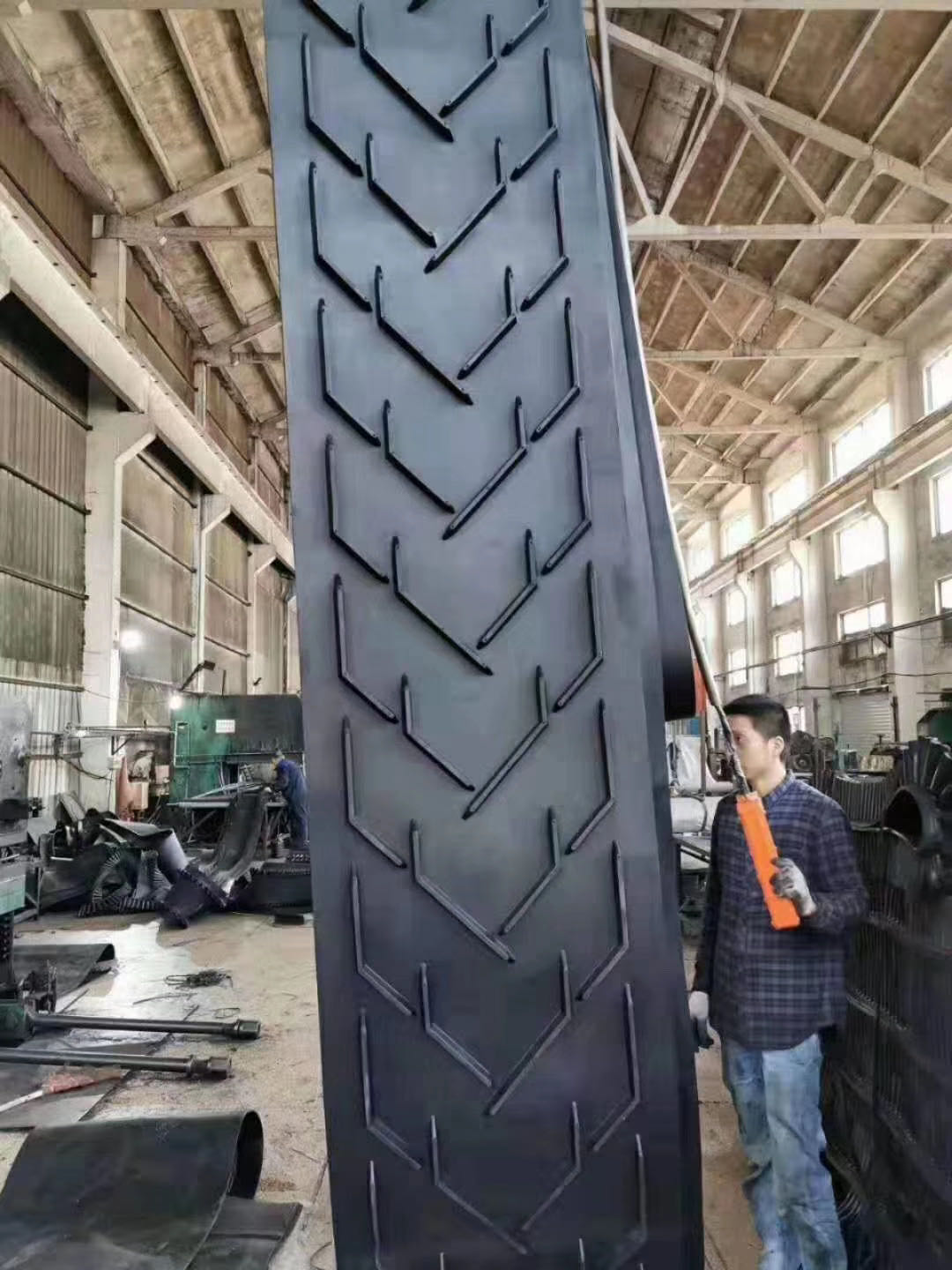

Selection of a type and height of profiles depends on the material to be conveyed and the angle of inclination. Their advantages are long service life and flexibility due to homogeneous UCB chevron profiles. Chevron conveyor belts are in widths from 400 mm to up to 1800 mm and in different rubber cover types. UCB Chevron conveyor belt is the right solution when higher angles of inclination are required. For further details please contact us.

We also provide sidewall conveyor belt for elevating materials.
